USB Thermometer Probe Fast response
Specification of USB Thermometer Probe Fast response
USB Termometer Probe Fast Respon.
adalah probe termometer yang bisa berfunsi sebagai termometer dan data logger
USB thermometer probe - fast response
Reference: 178-159
brand: ETI
Condition: New
Precision USB thermometer probe.
1 °C resolution with ±0.5 °C accuracy
USB/PC powered - no batteries required
includes free USB Lite thermometer software
Ø3.3 x 100 mm
USB thermometer probe with stainless probe incorporates a heavy duty ribbed, polypropylene handle. The stainless steel, fast response, needle penetration probe is suitable for liquids and soft semi-solid materials including fish, fruit and other soft or delicate materials. Response time less than one second. Maximum probe temperature 125 °C.
The Precision USB Thermometer Probe provides a reliable and economical method of measuring temperature utilising a computer or PDA (Host). Each probe is calibrated to provide excellent accuracy and stability.
The USB Thermometer Probe measures temperature over the range of -40 to 125 °C (-40 to 85 °C for the USB stick air probe) with an 0.1 °C resolution and an accuracy of ±0.5 °C.
A precision NTC thermistor is combined with a 16-bit analogue to digital converter and a simple USB communication interface to capture real-time temperature data.
Each USB probe incorporates a unique serial number, allowing several probes to monitor temperature at the same time via a direct USB connection or a USB hub. The USB Lite thermometer software converts your PC or PDA (Host) into a thermometer, chart recorder or data-logger.
No external power source or batteries are required - all the power (30 mA max @ 5 volt) is taken from the USB port. The compact design is ideal for a wide range of applications including computer/server room monitoring, warehouse monitoring and display cabinet monitoring.

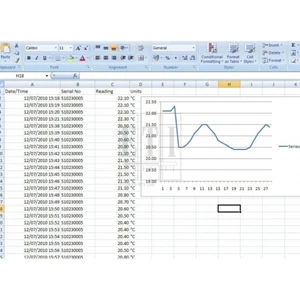

USB Lite Thermometer Software:
Each USB temperature stick is supplied with Windows 2000/XP/7 compatible software. Additionally, the most recent version of the application software is available as a free download from this link.
specification
USB temperature probe
range -40 to 125°C
resolution 0.1°C
accuracy ±0.5°C across full range
memory unlimited via PC
sample rate/log rate 1 second to 1 hour/1 minute to six hours
power 5 volt supplied via PC USB port
display on-screen software and via Excel
dimensions TBA
weight TBA
Untuk keterangan lebih lanjut, silahkan download PDF ini :
